Mower Deck Rebuild Kit Blade Spindle Idler Belt Wheel Fits John Deere 48 inch L120 L130 GX20305 GX20250 GX10168

Features:

• One New Aftermarket Replacement 48" Deck Rebuild Kit
• Fits John Deere Lawn Mower Models: L120 & L130

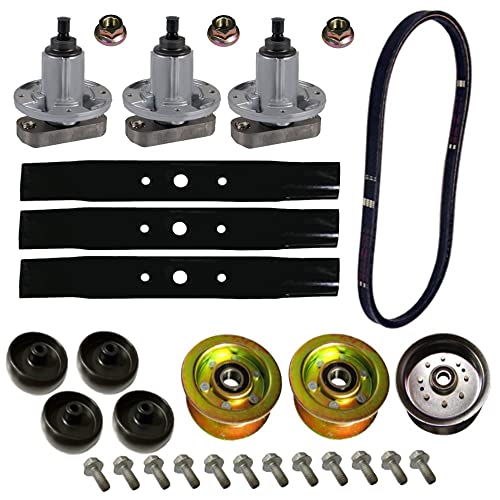

• Kit Contains: (3) Spindle Assembly, (3) 48" Cut XHT Blade

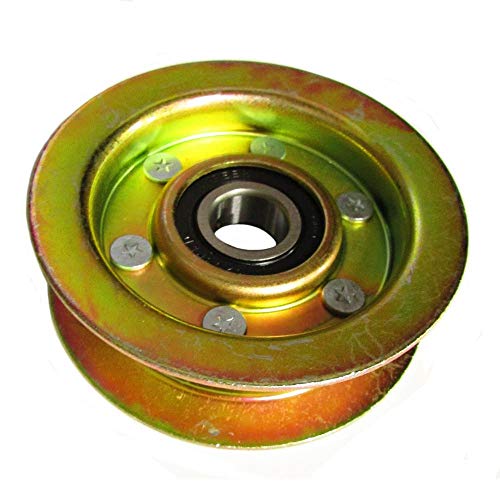

• (3) Pulley Lock Nut, (1) Steel Flat Idler Pulley w/ Flanges, (1) Belt
• (2) Flat Idler Pulley, (4) Deck Wheel, (12) Thread Cutting Bolt

PartNumber: KT-LAB40-0004

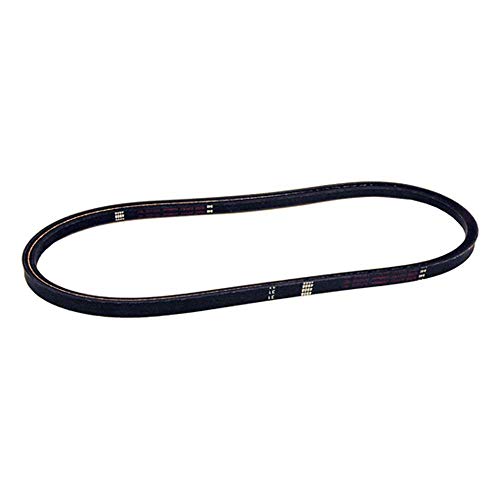

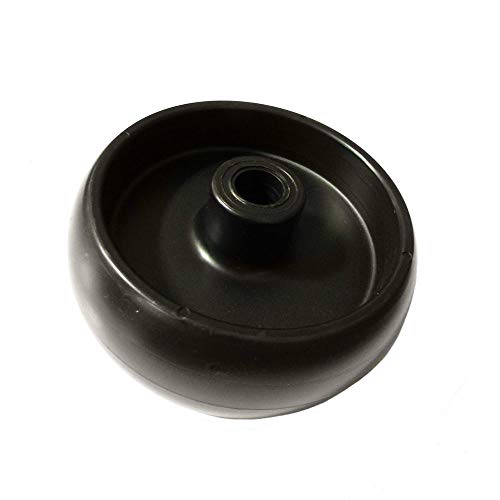

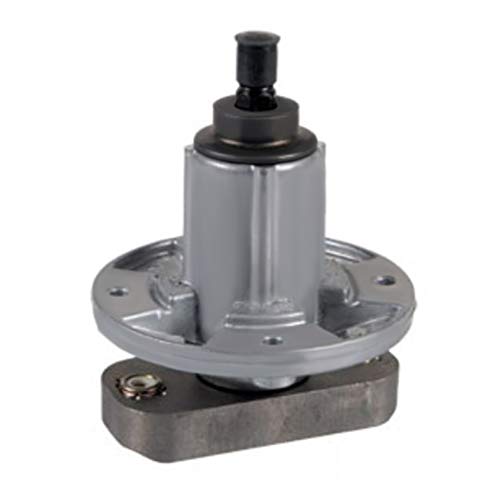

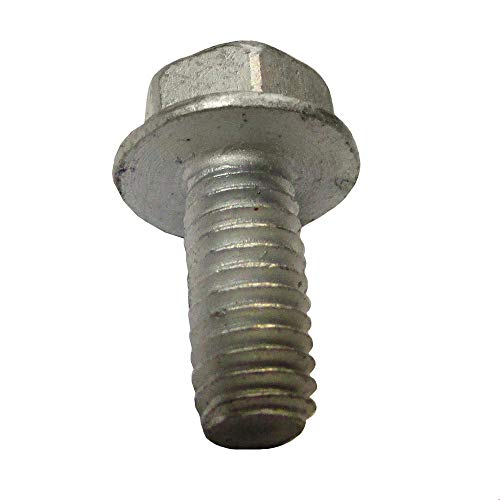

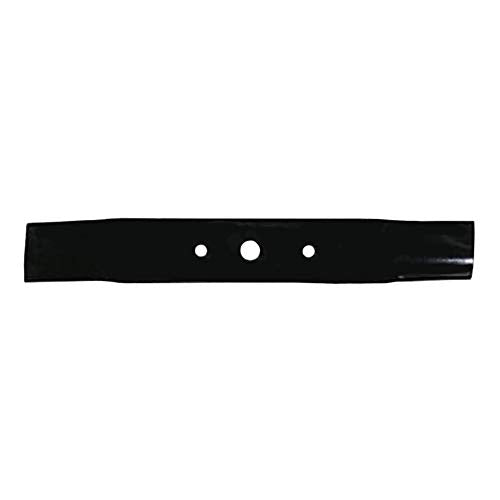

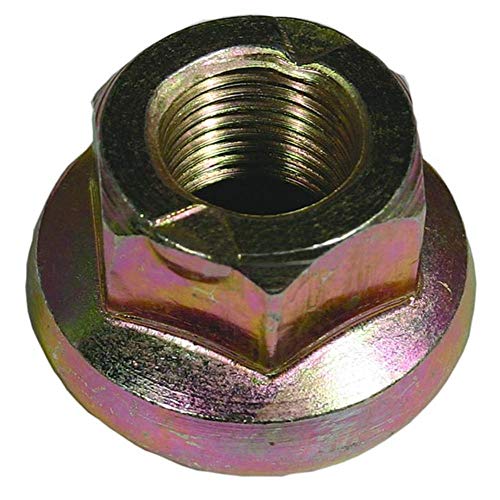

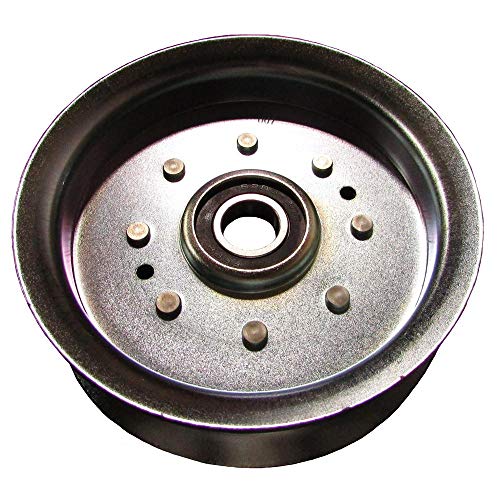

Details: One New Aftermarket Replacement 48" Deck Rebuild Kit Fits John Deere Lawn Mower Models: L120 & L130 Kit Includes: (3) Spindle, (12) Thread Cutting Bolt, (3) Blade, (1) Belt, (1) Steel Flat Idler Pulley, (2) Flat Idler Pulley, (3) Pulley Lock Nut, (4) Solid Deck Wheel Spindles Tech Info: With Grease Fitting Replaces Part Numbers: GY20050, GY20479, GY20785 Thread Cutting Bolt Tech Info: Length: 3/4" 5/16"-18 Replaces Part Numbers: GX20234, GX22456 Pulley Locknut Tech Info: Thread Length: 9/16"-18 Outer Diameter: 1-1/4" Thickness: 3/4" Type: Flange Hex: 7/8" Replaces Part Numbers: 137266, 139729, 178342, 400234 Blade Tech Info: Length: 17" Width: 2-1/2" Thickness: 0.156" Center Hole: 11/16" Outer Hole 13/32" 3-3/4" C-C Replaces Part Numbers: GX20250, GY20568 Belt Tech Info: Width: 1/2" Length: 141-1/8" Replaces Part Numbers: GX21833, 07217400 Steel Flat Idler Pulley Tech Info: Outer Diameter: 5-1/4"Including Flanges Inner Diameter: 11/16" Height: 1-3/4" Replaces Part Numbers: GY20110, GY20629, GY22082 Flat Idler Pulley Tech Info: Outer Diameter: 3-5/8" Inner Diameter: 11/16" Height: 1-3/16" Replaces Part Numbers: GY20067, GY22172 Solid Deck Wheel Tech Info: Center Hole (Bore): 5/8" Hub: 1-3/4" Offset Tread: Smooth Bearing Type: None Wheel Size: 5" x 2" (1.785" Wide) Material: Plastic Wheel Color: Black Bolts not Included Replaces Part Numbers: GX10168 Available Individually, In Other Multiples, and Various Kits - Please See Our Other Listings! All OEM part numbers and logos are to be used for identification purposes only

Model: KT-LAB40-0004

Item Condition: New
